Description
AIRBOX DELETE BRACKET - RELOCATE SIDE PANEL MOUNT FOR SNOWBIKE INTAKE
On KTM, Husqvarna, and GASGAS bikes, the best way to ensure 100% snow evacuation is to disassemble and remove every piece of the inner airbox (and install a Snowbike Air Intake). But, then how do you re-mount the plastics' side panels? Answer: the C3 Airbox Delete Bracket!

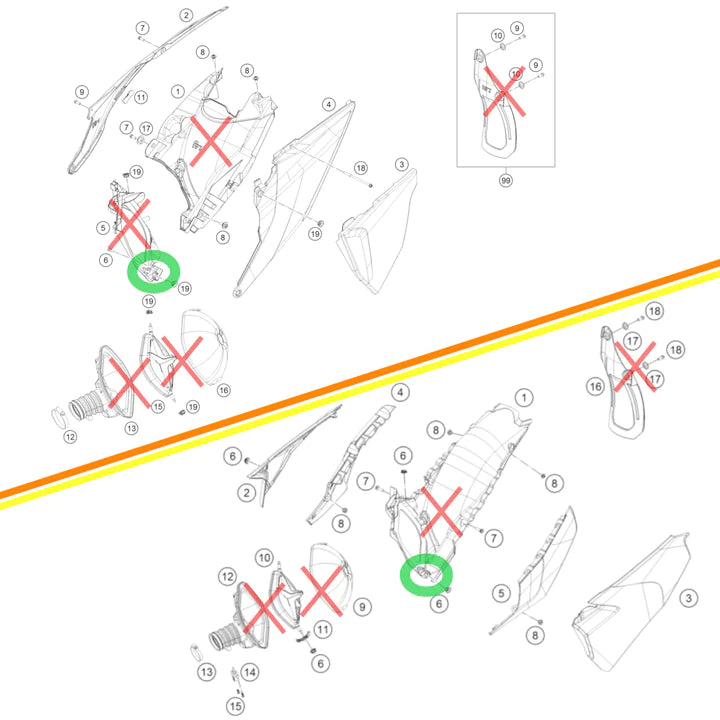

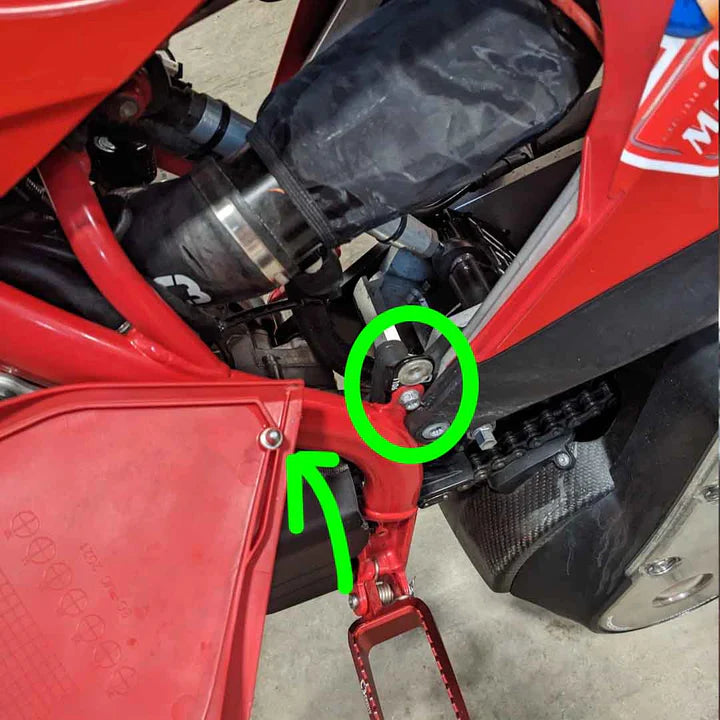

Simple - when you take out the summer intake boot, also take out the front part of the airbox that it was mounted to (don't have to cut anything!). Put this in its place, and press in the OEM grommet - you've now relocated the side panel mount. Vitally, now you can also take out the inner rear fender, which acts as the back and bottom of the airbox, so there's nowhere snow could collect even if it wanted to.
No more cutting plastics required
A more open airbox is conducive to COLD intake air
Intake air sensor is one of the correction tables in the ECU: colder air = denser air = more air, more fuel, more power!
This is especially true on snowbikes with enclosures that build heat in the whole "engine bay"
With our proprietary MOUNTAIN MAP ECU datalogger setup, we sometimes see intake air temps over 30° higher than ambient on closed-in bikes, so it's definitely not insignificant

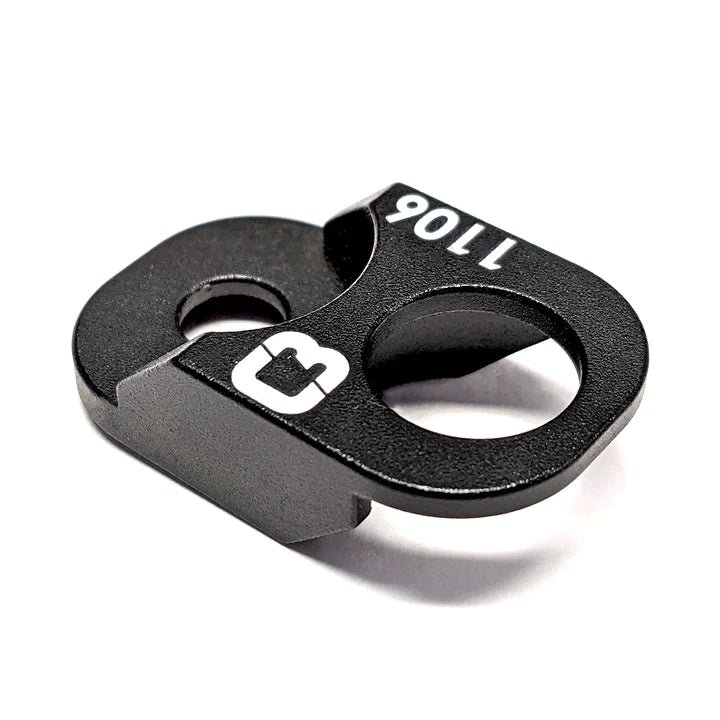

Machined aluminum for a precise fit

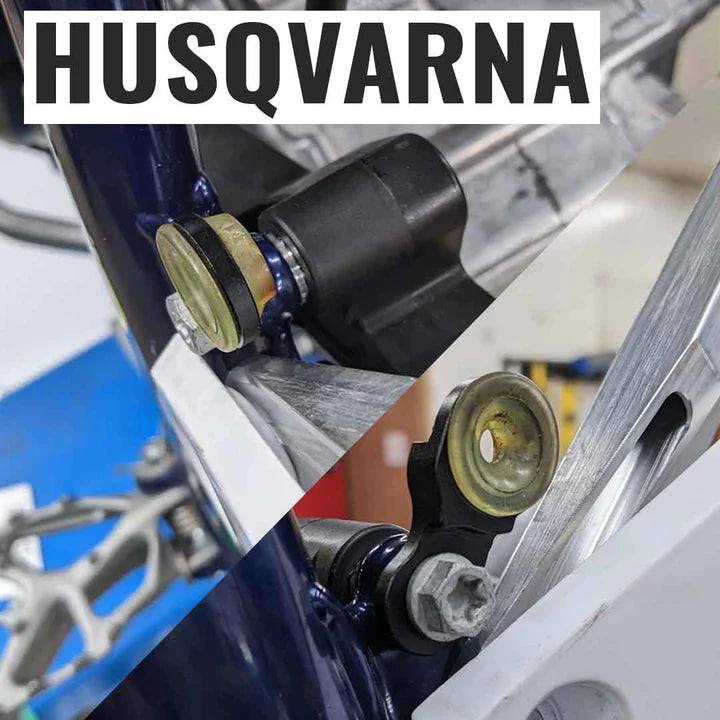

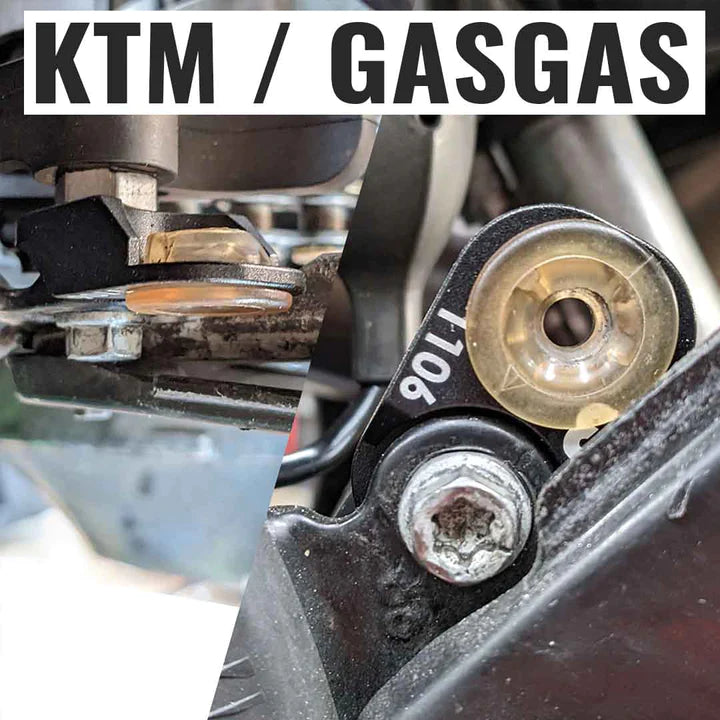

CPIN1106 fits 2016-22 KTM (2017-23 EXC) and 2021-23 GASGAS. CPIN1107 fits 2016-22 Husqvarna (2017-23 FE)
Fitment comment: as always, "Factory Edition" or "Rockstar Edition" models are one year ahead. Always use the parts for one year newer than the model year of your bike. Example, for 2022 KTM 450 SX-F Factory Edition, use the 2023 parts.
FAQ: do you have this part for Yamaha/Honda/Kawasaki/etc? A: No, the airbox and/or side panel configuration on your bike is different, so this part is not needed.
FAQ: how about 350 or 2-strokes? A: Yes the airbox+subframe is shared with the 450 in most cases we are aware of, so you can get the bracket that corresponds to the appropriate frame generation (not necessarily the same model year). You can check the KTM parts fiches to do your own research if you are unsure.
